ROSENTHAL ZWS |
 |

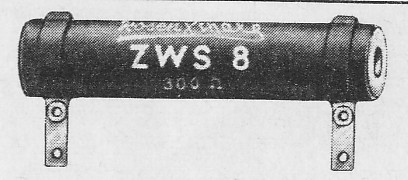

Rosenthal RIG ZWS SL
|
|
|
|
|
|
- Rosenthal - Werte nach E12, Toleranz 10%, Lötschellen
ZWS 6, 6W, 8x45mm, 1 Ohm- 10 kOhm
ZWS 8, 8W, 10x50mm, 1 Ohm- 10 kOhm
ZWS 12, 12W, 12,5x55mm, 1 Ohm- 16 kOhm
ZWS 15, 15W, 12,5x62mm, 1 Ohm- 20 kOhm
ZWS 20, 20W, 15,5x62mm, 1 Ohm- 30 kOhm
ZWS 35, 35W, 15,5x100mm, 1,6 Ohm- 51 kOhm
|

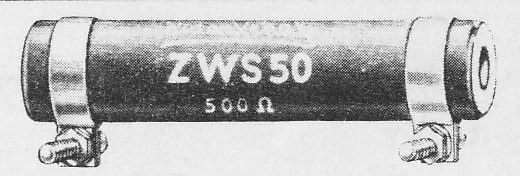

Rosenthal RIG ZWS SS
|
|
|
|
|
|
- Rosenthal - Werte nach E12, Toleranz 10%, Schraubschellen
ZWS 12, 12W, 12,5x55mm, 1 Ohm- 16 kOhm
ZWS 15, 15W, 12,5x62mm, 1 Ohm- 20 kOhm
ZWS 20, 20W, 15,5x62mm, 1 Ohm- 30 kOhm
ZWS 35, 35W, 15,5x100mm, 1,6 Ohm- 51 kOhm
ZWS 50, 50W, 22x100mm, 2 Ohm- 62 kOhm
ZWS 100, 100W, 22x165mm, 3,9 Ohm- 120 kOhm
ZWS 150, 150W, 22x265mm, 7,5 Ohm- 200 kOhm
ZWS 250, 250W, 33x330mm, 12 Ohm- 360 kOhm
|

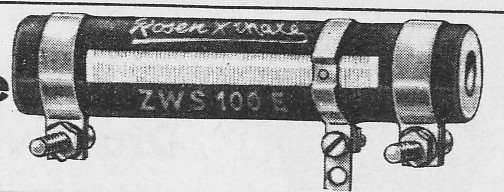

Rosenthal RIG ZWS E
|
|
|
|
|
|
- Rosenthal - Werte nach E12, Toleranz 10%, einstellbar
ZWS 6 E, 6W, 8x45mm, 1 Ohm- 3,9 kOhm
ZWS 8 E, 8W, 10x50mm, 1 Ohm- 5,6 kOhm
ZWS 12 E, 12W, 12,5x55mm, 1 Ohm- 7,5 kOhm
ZWS 15 E, 15W, 12,5x62mm, 1 Ohm- 10 kOhm
ZWS 20 E, 20W, 15,5x62mm, 1 Ohm- 12 kOhm
ZWS 35 E, 35W, 15,5x100mm, 1,6 Ohm- 20 kOhm
ZWS 50 E, 50W, 22x100mm, 2 Ohm- 24 kOhm
ZWS 100 E, 100W, 22x165mm, 3,9 Ohm- 51 kOhm
ZWS 150 E, 150W, 22x265mm, 7,5 Ohm- 100 kOhm
ZWS 250 E, 250W, 33x330mm, 12 Ohm- 160 kOhm
|
Rosenthal RIG ZWS 30/
|
|
|
|
|
|
- Rosenthal - Werte nach E12, Toleranz 10%, verdrehsicher, Schraubanschluss
ZWS 30/100, 75W, 33x100mm, 3 Ohm- 100 kOhm
ZWS 30/133, 110W, 33x133mm, 4,7 Ohm- 130 kOhm
|
Rosenthal RIG ZWS 30/ E
|
|
|
|
|
|
- Rosenthal - Werte nach E12, Toleranz 10%, verdrehsicher, Schraubanschluss, einstellbar
ZWS 30/100 E, 75W, 33x100mm, 3 Ohm- 51 kOhm
ZWS 30/133 E, 110W, 33x133mm, 4,7 Ohm- 62 kOhm
|
